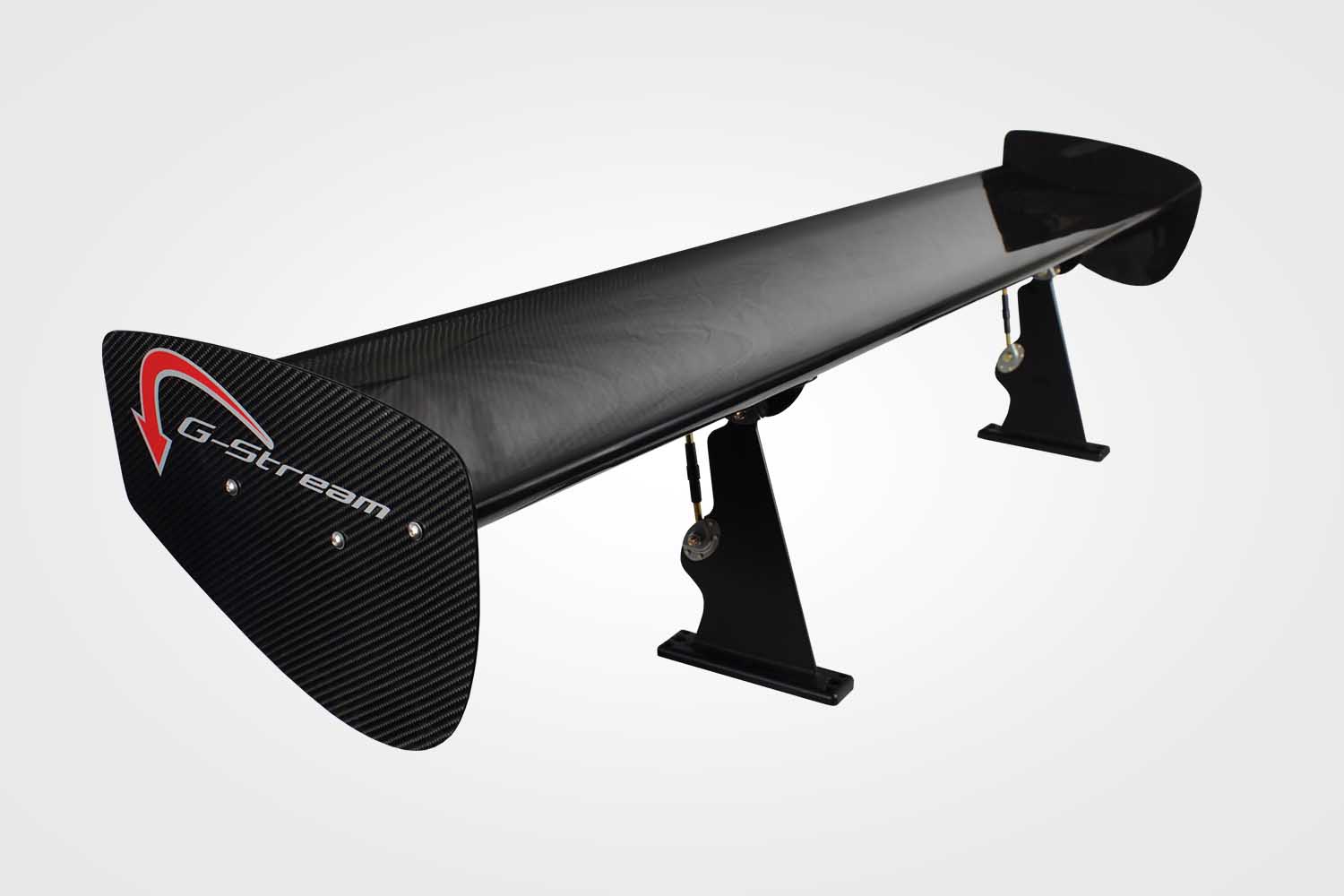

- World Challenge Winning Aerodynamic Design
- CFD Developed
- Wind Tunnel Tested
- 12" Chord with 68" Width
- SCCA/NASA/Trans Am legal
Size: 12" chord width by 68" long
Weight: Approx. 7.5 lbs., excluding End Plates and Struts.
Construction: Proprietary carbon fiber and epoxy construction with structural polyurethane foam core.
Finish: Clear Gelcoat or Grey urethane primer, ready to paint.
Strut Center Distance range: 18 to 44 inches

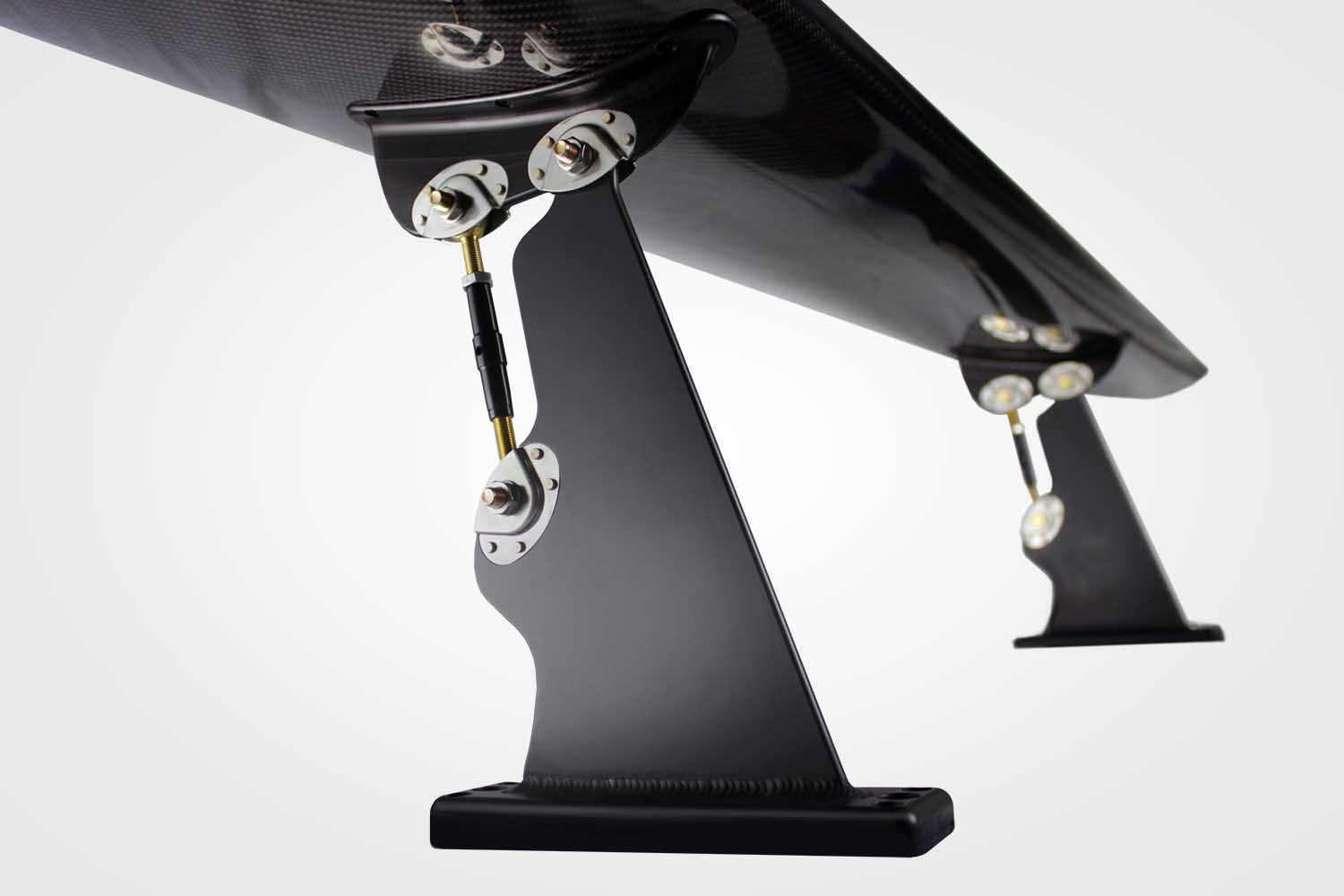

Strut Receivers (2): CNC machined from 6061-T6 aluminum with riveted and bonded stainless steel clevis plates. Provide a fully articulated interface and pitch adjustment of 2 deg. per turn with all G-Stream Struts.
Strut Receivers are supplied unmounted and must be installed only after mounting the struts and determining strut center distance.

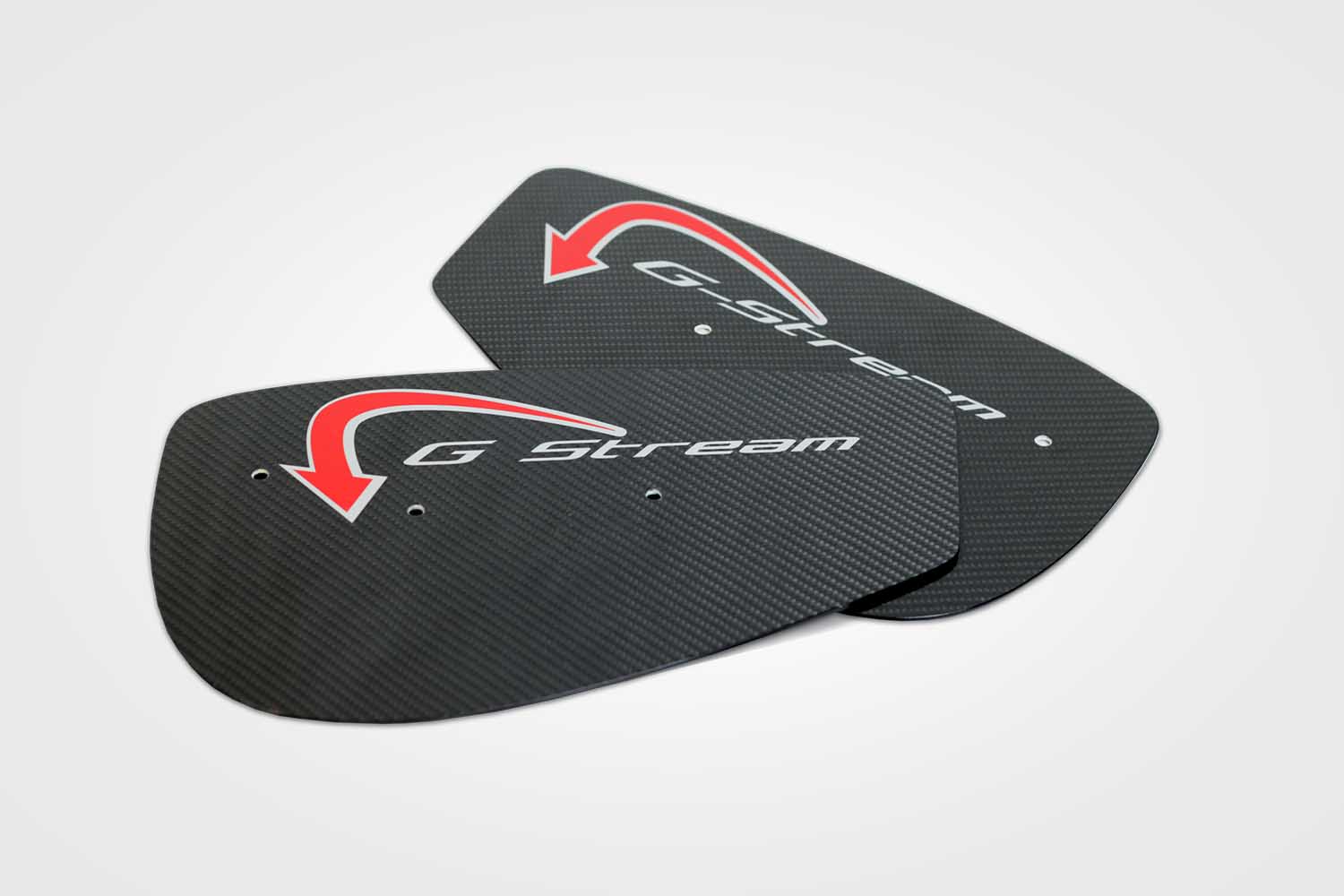

End Plates (2): Carbon Fiber end pates with G-Stream logo
